Katool 11000 lb Four Post Car Storage and Service Lift

by KATOOL
SKU KT-4H110
Original price $3,599.88 - Original price $3,599.88
Original price
$3,599.88
$3,599.88 - $3,599.88
Current price $3,599.88

✔️Authorized Dealer

✔️No Sales Tax Outside of California & New York

✔️This Item Ships by Truck Only

✔️For Questions Call +1 949-229-2361

✔️Manufacturer's Warranty

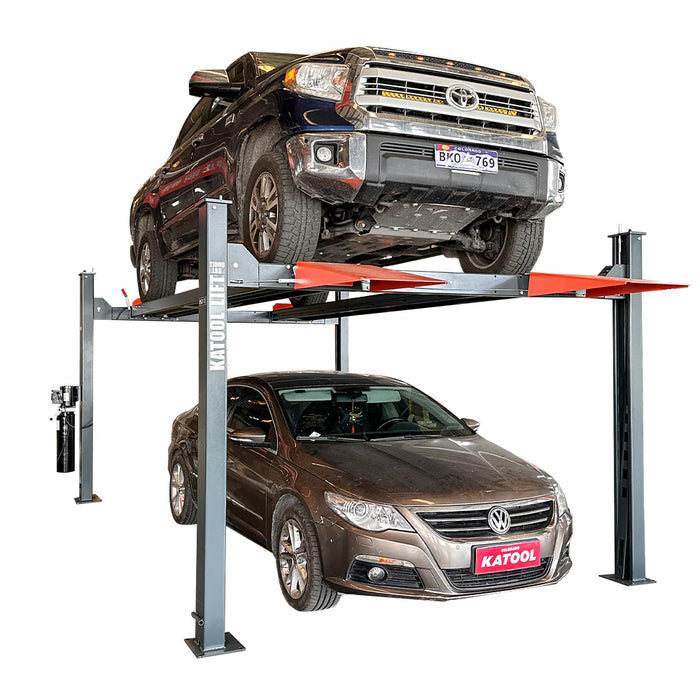

Engineered for professional shops, fleet garages, and serious home garage owners, this heavy-duty four post vehicle lift delivers 11,000 lbs of lifting capacity with the stability and safety features needed for daily high-volume use. Whether you need a reliable service lift for maintenance work or a space-saving storage solution for trucks and SUVs, this four post lift handles it all with confidence.

⚠️ CONCRETE REQUIREMENT WARNING

Concrete thickness must be at least 5.9" (150mm) with a minimum 3,000 PSI rating. Failure to install this lift on proper concrete could result in serious injury or death. It is the customer's responsibility to verify concrete thickness and strength before purchase and installation.

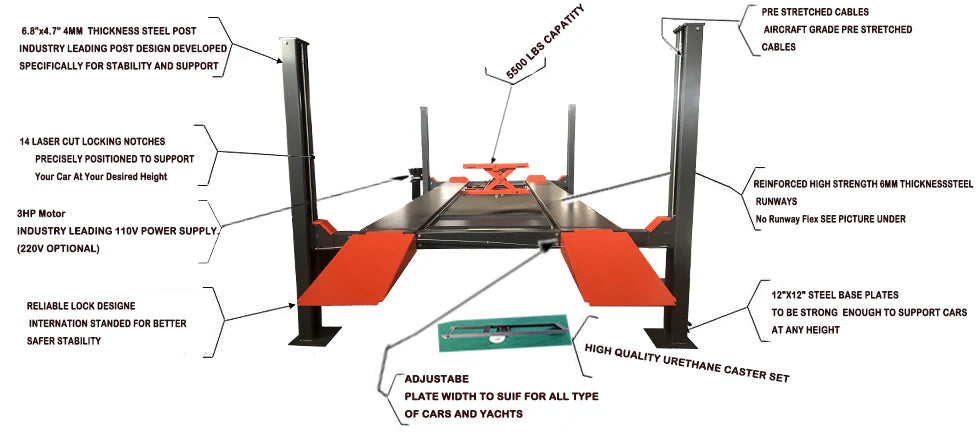

  • 11,000 lb lifting capacity handles cars, trucks, SUVs, and light commercial vehicles
  • CE approved and certified — tested to 115% dynamic and 150% static load capacity standards

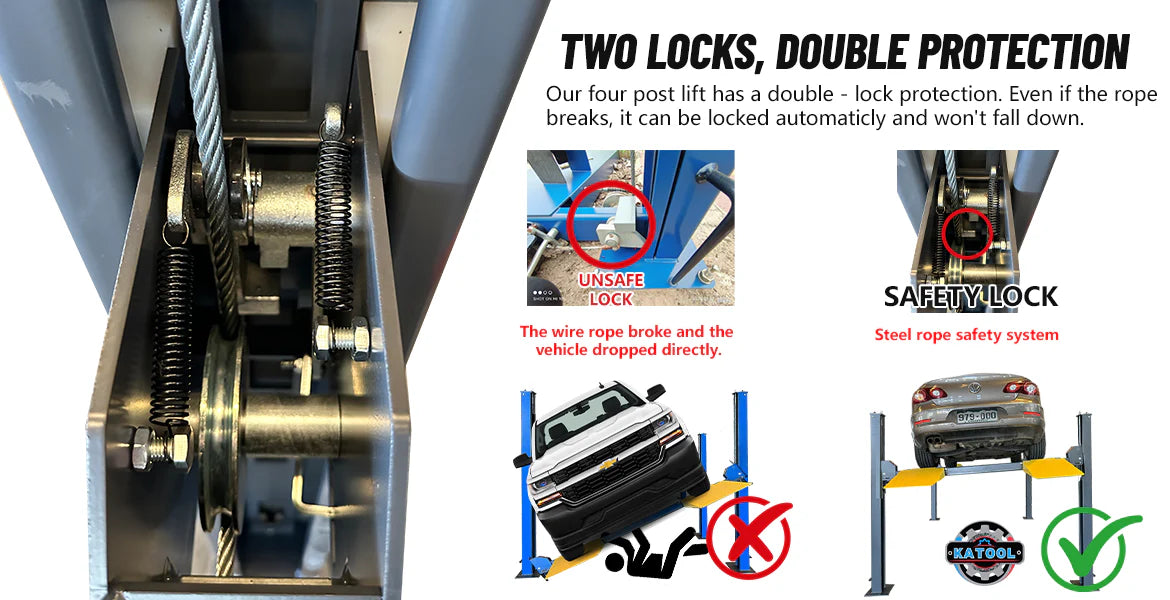

  • Four mechanical locking devices with primary and secondary slack-cable safety system
  • Single-point manual safety lock release for fast, easy lowering
  • Non-skid diamond coated platforms and adjustable safety lock ladders for secure positioning
  • Power side column installs on either side, front or rear — flexible for any garage layout
  • Runs on standard 110V or optional 220V power — no special wiring required for most shops
  • Includes two drip trays and jack tray — optional rolling jacks and caster kit available separately
  • Low 6.2 inch minimum runway height accommodates lowered vehicles and modified cars

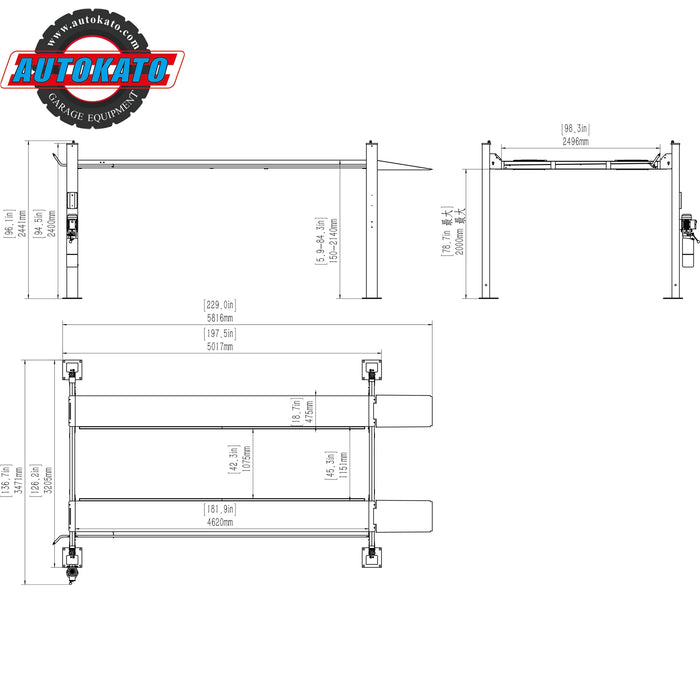

Specification Detail
Lifting Capacity 11,000 lbs
Max Lifting Height 84.25 in
Min Runway Height 6.2 in
Overall Width 126 in
Overall Length 223 in
Post Height 95 in
Lift Time 83 seconds
Lower Time 40 seconds
Power Supply 110V / 60Hz / 1PH (220V optional)
Certification CE Approved and Certified
Concrete Requirement Min 3.93 in (100mm) thickness, 3,000 PSI

─────────────────────────────

🚛 Shipping & Pickup Information
Katool lifts ship via freight carrier. No liftgate available — unloading equipment required on-site.

📦 View Katool Pickup & Delivery FAQ →
Get a Free Quote
