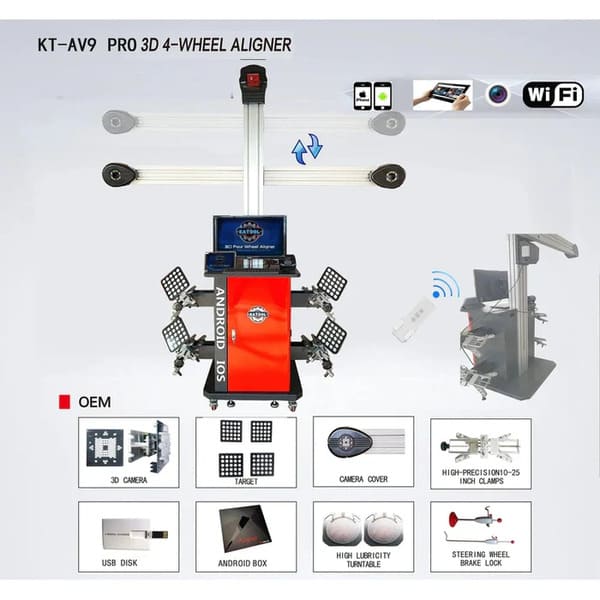

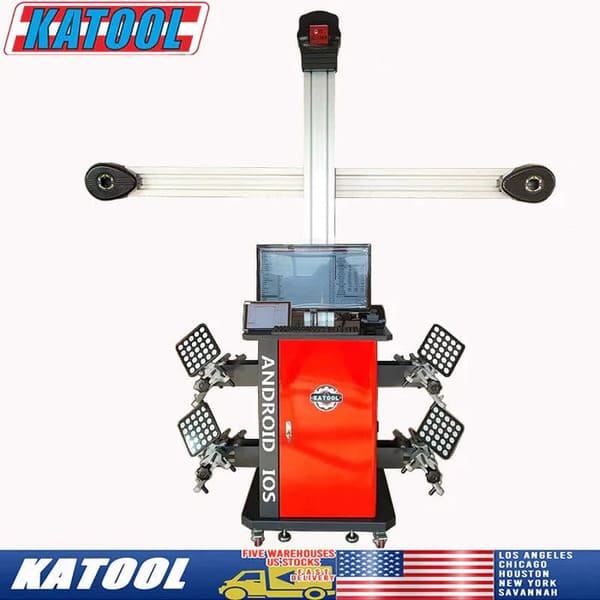

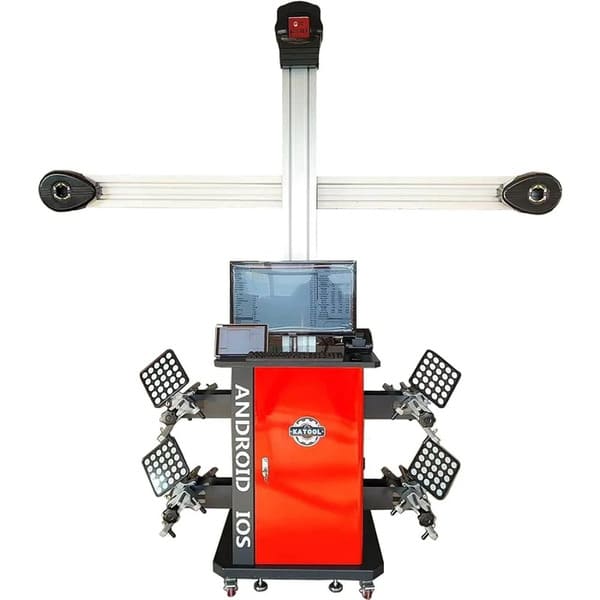

Katool KT AV9 Pro Full Automatic 3D Wheel Alignment Machine 5MP Camera

The Katool KT-AV9 Pro is a full-automatic mobile 3D wheel alignment machine built for professional automotive shops, tire centers, and dealerships that demand top-tier accuracy, fast setup, and complete workflow flexibility. Stepping up from the AV651, the AV9 Pro adds industry-leading dual 5-megapixel cameras with a 59 to 118 inch optical range, a remote-controlled motorized post that automatically tracks vehicle lift height, and enhanced 3D imaging that delivers precise readings on toe, camber, caster, and thrust angle across virtually any vehicle in your service bay. With zero calibration required at installation, unlimited vehicle specification memory, and a complete hardware bundle including a 30-inch display, tablet, and printer, the AV9 Pro transforms any 2-post or scissor lift into a professional-grade alignment station in under two hours.

Key Features

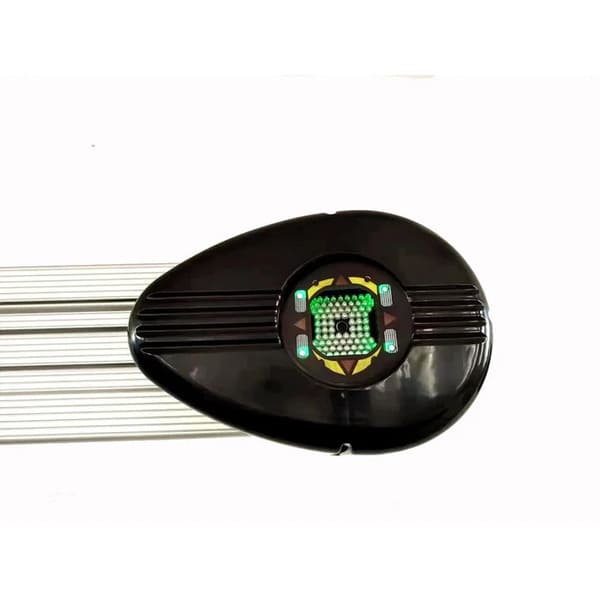

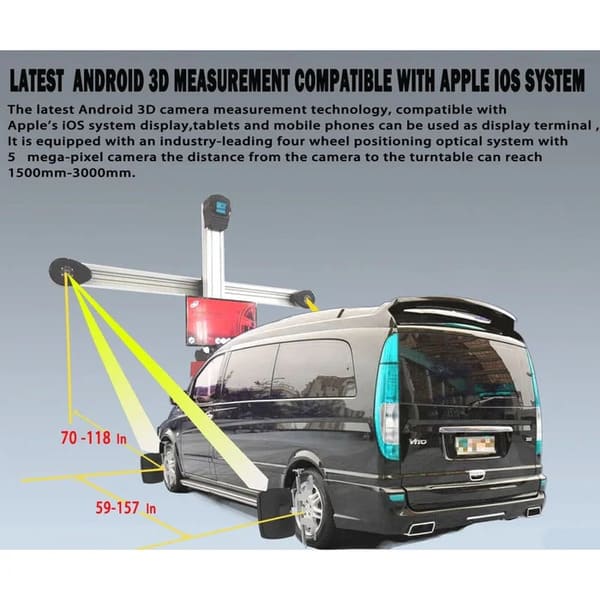

• Dual 5-megapixel 3D camera system with 59 to 118 inch measurement distance — industry-leading optical precision for accurate readings even in challenging lighting conditions
• Full automatic operation — the most advanced alignment mode in the Katool lineup, delivering swift and complete four-wheel alignment readings with minimal technician input

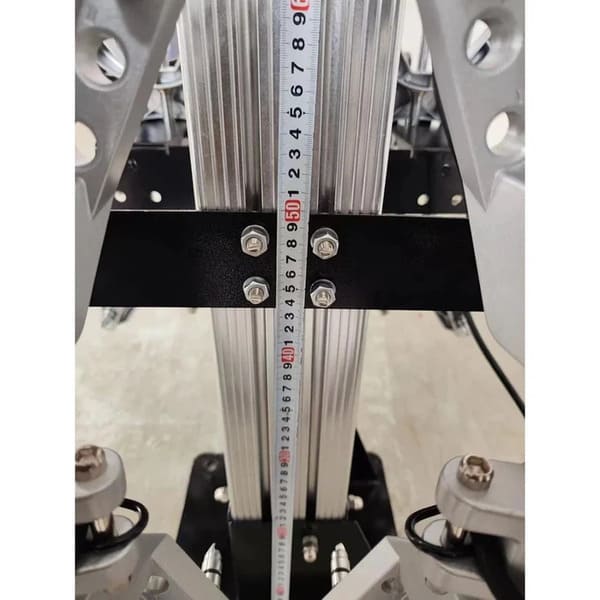

• Remote-controlled motorized post automatically tracks vehicle height adjustments from ground level to full lift extension — no manual repositioning needed throughout the alignment cycle
• Zero calibration required at installation — set up in under two hours and begin performing profitable alignments immediately, with no complex calibration procedures
• Works on 2-post lifts and scissor lifts — no dedicated alignment rack required, transforms your existing equipment into a complete alignment bay
• Measures toe, camber, caster, and thrust angle — comprehensive alignment data for front and rear axles across the full range of passenger cars and light trucks

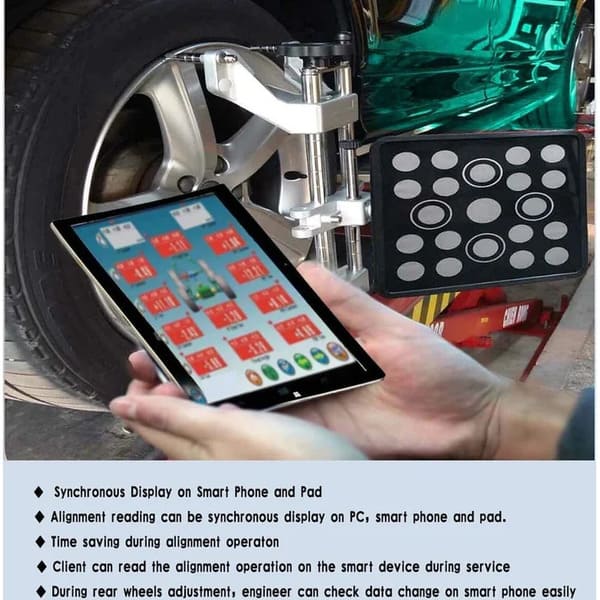

• Synchronous display on all devices simultaneously — technicians view live alignment data on the 30-inch monitor, included tablet, and personal smartphones with less than 0.1-second delay
• Client-facing smart device sync — customers follow the alignment in real time on their own Android or iOS device from the waiting area, building transparency that converts declined services into approvals
• Unlimited vehicle specification memory with free yearly database updates covering the latest US, European, and Asian vehicle models
• Android-powered software platform compatible with iOS for flexible multi-device operation and minimal IT maintenance requirements

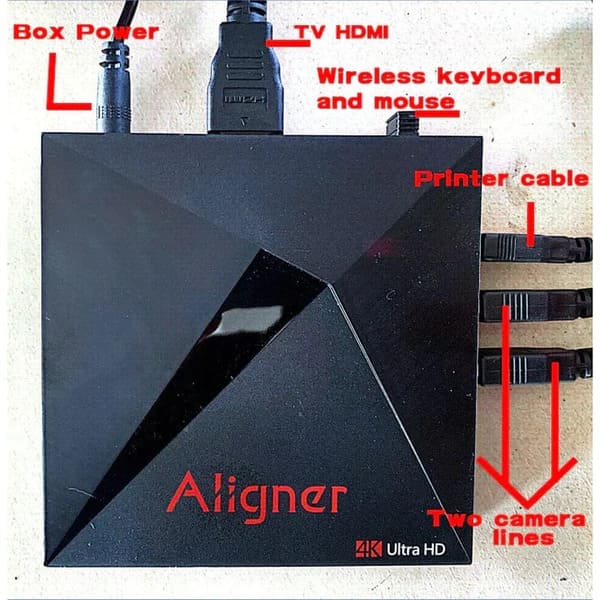

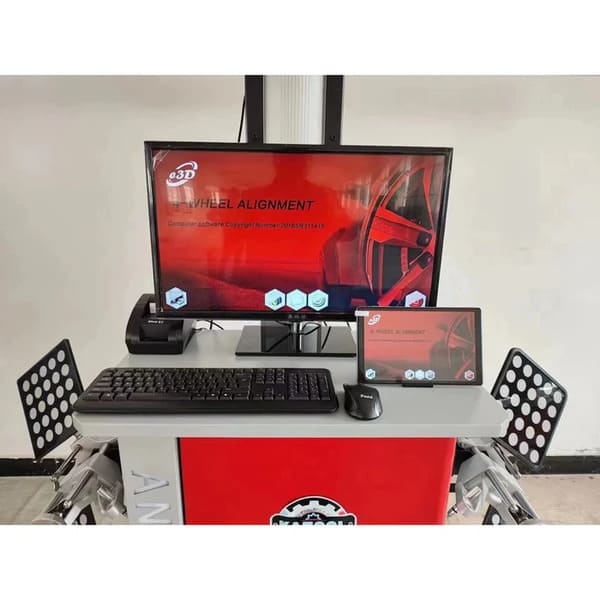

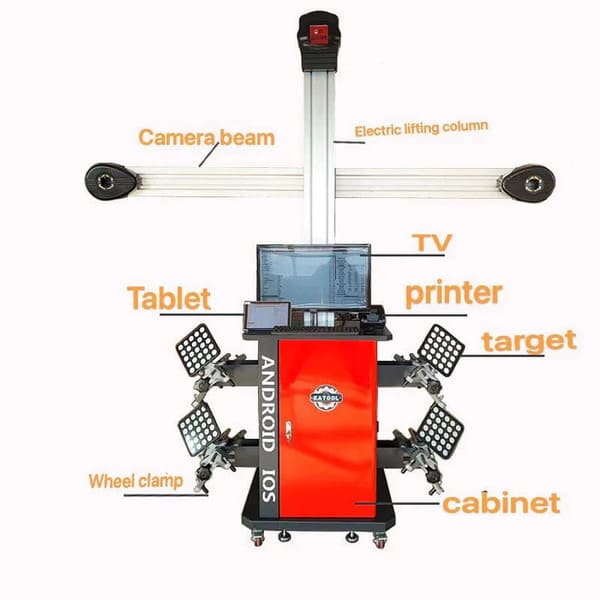

• Complete hardware package included: 30-inch display, tablet, mouse, keypad, printer, WiFi device, and USB drive — everything needed right out of the crate
• Runs on 100V to 240V single-phase power — compatible with virtually any shop or garage electrical setup worldwide

How It Compares to the AV651

Specifications
